Pre-Wired Off-Grid Solar Kit Shipped to Western Australia and Ready to Install
- Solar
- 4.28 kW
- Inverter
- 8 kW
- Battery
- 10 kWh
Summary
Pre-wired off-grid kit shipped to Western Australia: 9x Jinko 475W panels with tilt mount, 10kWh Pylontech US5000 battery with protective box, 8kW Deye inverter with switchboard, 32A generator input, and 10A/32A power outlets. Ready to install.
A Complete Pre-wired Off-Grid System Shipped to Western Australia
This project was supplied as a fully pre-wired off-grid solar kit for delivery to Western Australia.

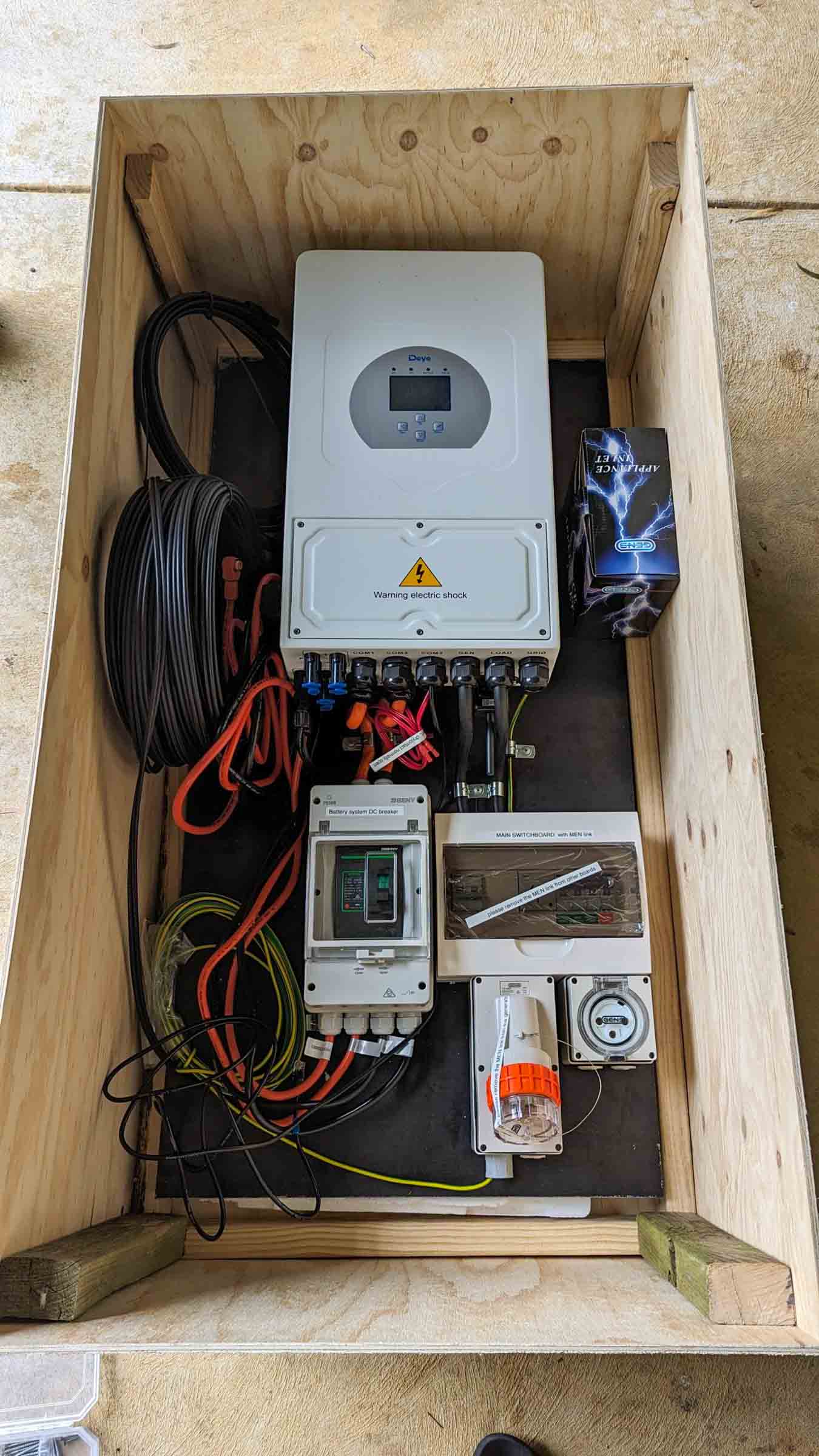

Rather than assembling the system on site, the inverter, switchboard and battery components were pre-wired and tested in our Ballarat workshop before shipping. That reduces installation time and gives the installer a system that’s ready to connect.
Built and Tested Before Leaving the Workshop
The kit includes nine Jinko 475W solar panels mounted on a tilt frame, an 8kW Deye off-grid inverter, 10kWh of Pylontech lithium battery storage, and a pre-wired switchboard.
A 32A generator input with two-wire auto start provides provision for backup generation, while 10A and 32A power outlets are already integrated into the system.
By completing the electrical assembly before shipping, the major components arrive organised, labelled and ready for installation.
Complete Off-Grid Kit Ready for Installation in Western Australia
Pre-wired systems allow customers outside Victoria to receive the same workshop-built electrical system used in our local installations.
Instead of building the switchboard on site, the installer receives a completed system that’s ready to position, connect and commission. It shortens installation time, improves consistency and makes remote off-grid projects easier to deliver.
