50kW Off-Grid Solar. No Grid Connection. No Power Bills.

skip to learn more about this project

Install Specificaitons

50kW 2x Victron inverters

Pylontech battery system

3x Fixed Ground Mounted Panels - Jinko 470W

Charge controllers

3x MPPT (Maximum Power Point Tracking) charge controllers

Isolator

150A isolator

Busbar

12 point central distribution & connection point

Underground cables

Underground cable run with Anaconda steel conduit

Project Cost:

Enquire about this system

Installation Details

Haddon, Vic

June 18, 2023

Optimised Target Profile

High Demand Use, Commercial

MPPT maximizes the power output from solar panels to a battery ban

250mm² DC cables to hold and carry the current without overheating

Isolator Functions like a master off switch to safely disconnect the system during maintenance or emergencies.

central distribution point with 12 connection points

This is a 50kW off-grid solar system going in, one of the larger residential installs we’ve done.

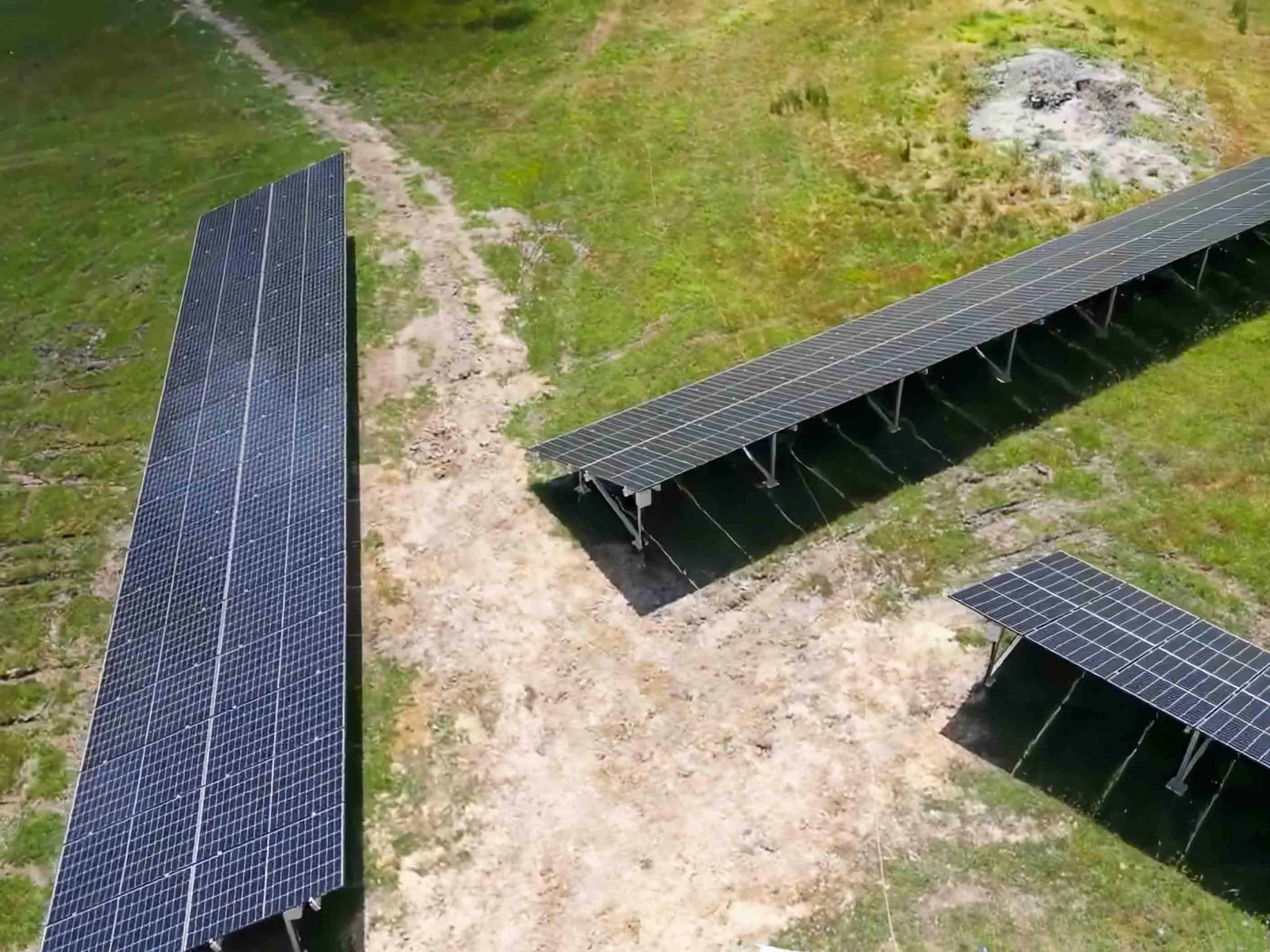

Three ground-mounted Jinko 470W panel arrays feed into three MPPT charge controllers. Power runs underground through steel conduit to the shed, where two Victron inverters and a Pylontech battery system take over from there.
No grid connection. No power bills. Just a system built to run.
