Rapid Install Off-Grid Base Kit

Architecture

The 100up Advantage: Built for Performance

Designed to handle everyday demand without compromise.

Each system is built to deliver consistent power, adapt to changing conditions, and support your home or business long term.

5 kW (1 x 5 kW)

Inverter

5 kWh (1 x 5 kWh)

BaTTERY

1.4 kW (3 x 475 W)

SOLAR Arrary

Engineered For Precision

Solar Configuration

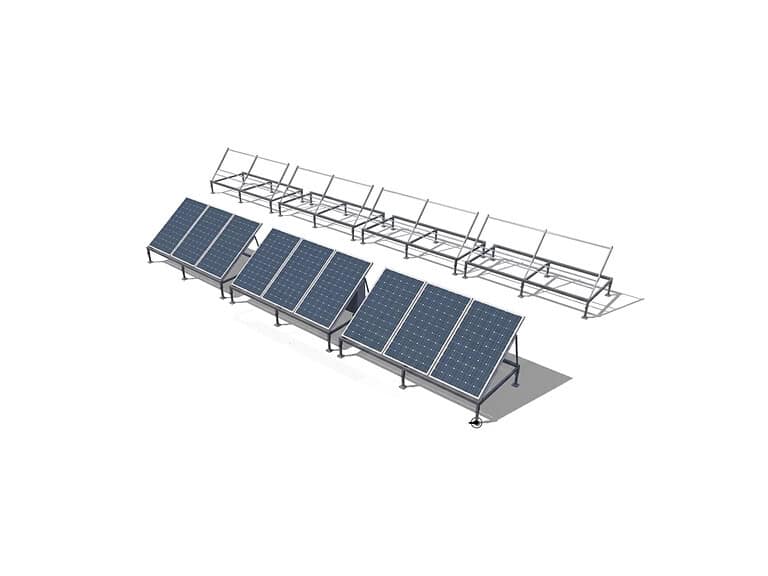

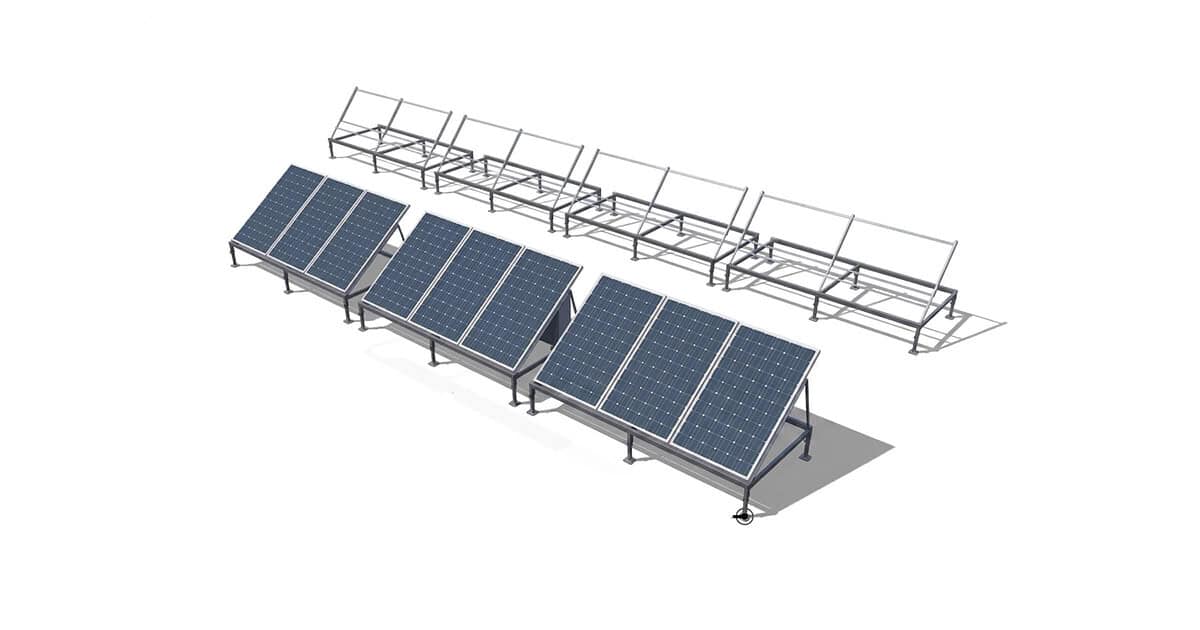

Additional solar panels can be added using extension blocks of three panels. Expandable as needed.

Battery Storage

The battery bank can be extended to virtually any size.

Power your life off-grid, in every season.

Specificaitons

Core Power Engine.

Battery Capacity

5 kWh (1 x 5 kWh)

Inverter Capacity

5 kW (1 x 5 kW)

Solar Array

1.4 kW (3 x 475 W)

Estimated Daily Energy Usage

~ 2.625 kWh

Target Profile

Optimised for

Suitable for a wide range of off-grid applications.

Single Home + EV Car

OccupanCY / USE

Installation

Ground Mount Included, Galvanized Steel Frame

System Expansion.

Solar Panels Expandable via extension blocks of three panels, Add more battery capacity to extend runtime and handle higher energy demand.,

WARRANTY & GUARNTEE

Energy Independence & Protection

Fast Install Off Grid Kit Warranty

Sigenergy Battery 10-year Warranty, Sigenergy Inverter 10-year Warranty

Off Grid Solar Specialists

100Up is dedicated solely to off-grid solar, with every system designed for reliable, long-term energy independence. ..

Proven Components & Accredited Installers

Off‑grid systems designed by 100UP and installed by SAA‑accredited electricians using CEC‑approved products.

Complete System Documentation

Every installation includes clear diagrams, system settings, and a structured handover so you understand how everything works.

Access to Government Rebates

Eligible systems can access federal rebates, with savings typically ranging from $1,700 to $30,000 depending on system design.

Ongoing Remote Support

With your consent, we can monitor system performance remotely and provide guidance if anything changes.

Fast Install KitFull Kit

PRICE

Built to handle real-world energy demand with confidence. The Fast Install Off Grid Kit is designed for reliable, long-term off-grid performance

$12500

- $13500

System Integration Ready

Single Home + EV Car

CEC‑approved products

SAA Accredited Installers

We Supply & Install SO you can BE 100% OFF GRID

Request Your Fast Install Install Estimate

Pricing Subject to Site Inspection, Roof & Ground SURVEY

More About Fast Install Off Grid Kit

Fast off-grid solar system (BASE)

Fast off grid solar system Fast off grid solar system This off-grid solar system is designed for quick installation and ease of assembly. It is free-standing and can be assembled by two people. The system includes a BASE, which consists of a ground mount or a free-standing frame, three 475W solar panels totaling 1.4kW, an inverter, and a 5kWh battery. The base system has a maximum power output of 2.5kW. The battery bank can be extended to virtually any size, and the system’s AC power capacity can also be increased as needed. Additional solar panels can be added using extension blocks of three panels, which are easy to connect. BASE System Components: Galvanized steel frame: Comes as a flat pack to fit three panels. Sigenergy Battery 5kWh: Includes a 10-year warranty. Sigenergy Inverter 5kW: Includes a 10-year warranty. Switchboard and bracket system: For mounting the switchboard and battery on the frame.
