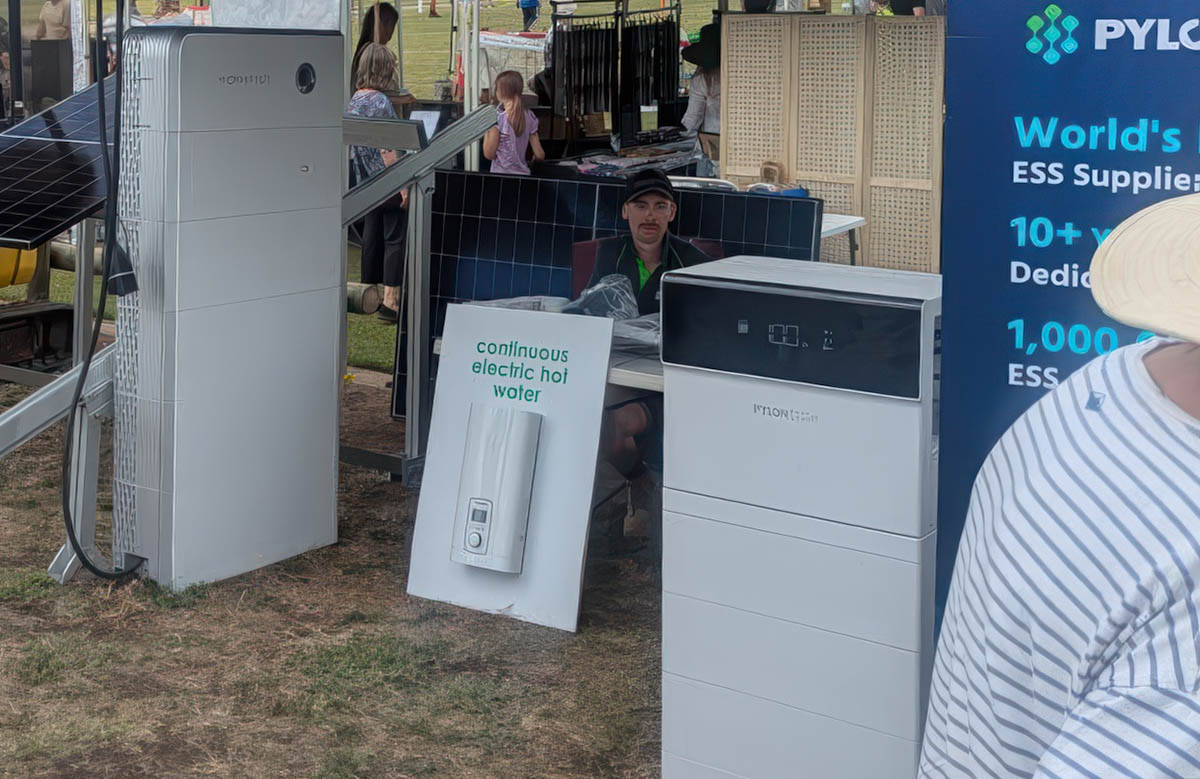

High-voltage lithium batteries (typically 120V–800V) are quickly becoming the new standard for home energy storage. Compared to traditional 48V systems, they offer better efficiency, more power, and simpler cabling — but they also bring new challenges around design, safety, and expansion.
Here’s a full guide to the advantages, technical points, and things you should know before choosing high-voltage batteries for your home.
Why Choose High-Voltage Batteries?
1. Better Efficiency
High-voltage batteries move the same amount of energy with much less current.
For example, a 10kW load at 400V draws only 25 amps, while at 48V it would draw over 200 amps.
Lower current means:
- Smaller cable sizes
- Lower resistance losses (less heat wasted)
- Better round-trip efficiency
High-voltage systems often connect directly to the inverter’s DC input without needing an extra DC-DC converter, which further improves overall system efficiency.
2. More Power and Faster Response
Because they operate at higher voltage with lower current, high-voltage batteries can deliver larger amounts of power without overloading cables or inverters.
They’re ideal for:
- Bigger family homes
- Homes running large air-conditioners, pumps, or EV chargers
- Systems needing fast battery charge/discharge (e.g., backup during blackouts)
High-voltage setups also handle heavy daily cycling better, reducing battery stress compared to low-voltage packs.
3. Smarter System Design
Modern hybrid inverters are designed with high-voltage inputs in mind.
Most new three-phase or large hybrid inverters operate between 150V–800V DC.
High-voltage batteries can connect straight into these inverters, avoiding extra conversions and keeping wiring simple.
It also means less clutter — no need for oversized cables, big junction boxes, or bulky battery switches like older 48V setups needed.
4. Compact Size with Proven Cells
High-voltage batteries use the same style of cells as electric vehicles — large format lithium-ion cells that are highly reliable, durable, and space-efficient.
Most systems are modular, stacking standard building blocks (e.g., 48V–100V modules) to reach the full pack voltage.
This makes installation easier, and it ensures future compatibility with EV trends.
Challenges to Be Aware Of
1. Safety Risks
High-voltage DC is dangerous.
Anything above 120V DC can cause severe electric shock, and DC arcs are harder to extinguish than AC faults.
For high-voltage batteries:
- Installers must use DC-rated isolators, fuses, and cables
- Systems must comply with standards like UL 9540 and NEC 2020 rules
- Only licensed electricians should install or work on these systems
Homes using HV batteries must treat them like any major electrical infrastructure, not DIY jobs.
2. Complex Battery Management
High-voltage systems often string together hundreds of lithium cells in series.
Each cell must stay carefully balanced to avoid overcharging, overheating, or early failure.
This requires:
- Advanced Battery Management Systems (BMS)
- Cell voltage monitoring
- Temperature control
- Active balancing between cells/modules
If the BMS isn’t well-designed, even a small cell mismatch can reduce the whole pack’s performance and lifespan.
3. Careful Inverter Matching Needed
Not all inverters are compatible with all battery voltages.
High-voltage batteries must be matched carefully to the inverter’s voltage range:
- If the battery voltage is too low, it may not start the inverter
- If too high, it could damage equipment
- If voltage ranges don’t align, expensive DC-DC converters might be needed, adding cost and reducing efficiency
Most new hybrid inverters (Sungrow, Goodwe, Fronius, etc.) have input windows like 150V–600V, perfect for modern high-voltage batteries.
Older or off-grid inverters (Victron, Selectronic) often expect 48V and are not suitable without conversion.
4. Harder to Expand Storage Later
Adding more storage to a high-voltage system isn’t always simple.
Most HV systems are sold as complete “stacks” with a set voltage.
To add capacity:
- You usually need to add another full stack
- Parallel battery stacks carefully (if allowed)
- Expansion can be limited by the inverter’s maximum input
In contrast, 48V systems often allow easier parallel battery expansion without voltage issues.
For growing homes or future energy upgrades, it’s important to plan ahead.
5. Higher Initial Cost
High-voltage battery systems generally cost more up-front because:
- They require more sophisticated BMS and safety systems
- They need HV-rated cabling, isolators, and fuses
- Certified HV battery modules are still a newer, smaller market
However, the long-term savings from better efficiency, less cabling, and lower maintenance can offset some of the extra cost over 10–15 years.
Quick Pros and Cons
| Advantages | Challenges |
|---|---|
| Lower current = lower losses, thinner cables | Higher installation safety requirements |
| Higher output power, faster charge/discharge | More complex and costly BMS needed |
| Works directly with modern hybrid inverters | Must carefully match battery to inverter |
| Compact, modular design with EV-proven cells | Expansion options are more limited |
| Better system efficiency, fewer conversions | Higher initial system cost |
Is High-Voltage Right for Your Home?
High-voltage lithium batteries are ideal if you:
- Have a large solar system (5kW+)
- Plan to install EV chargers, pool pumps, or big loads
- Want maximum efficiency and minimal cable losses
- Need a sleek, modern hybrid inverter setup
If you have a small off-grid home, a basic solar system under 5kW, or want simple DIY upgrades, a 48V system might still be the easier and more affordable choice.
As always, professional system design and installation are critical to get the best from your investment.
Check out our range of off-grid solar energy systems with high-voltage batteries
