Description
-

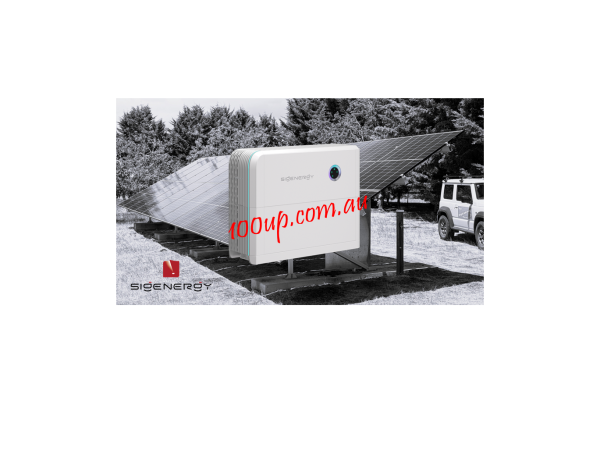

3 kW Solar Generation
6 × Jinko Tiger NEO 510W panels (mono, N-type)
5 kWh Battery Storage
Modular lithium battery, expandable
5 kW Hybrid Inverter
Off-grid ready, with AC switchboard
Plug-and-Play AC
Includes 10A & 15A power outlets
Aluminium Frame Kit
Ground-mount, flat-packed with hardwareInstallation Note
This system is DIY-friendly and comes mostly pre-wired. The inverter, battery, and AC switchboard are all preassembled on a pallet — no complex wiring required on your end.
To stay compliant with Australian standards, a licensed electrician is still required to:
• Install the earth stake (for system earthing)
• Connect the solar panel cables to the inverter input
• Test and commission the system for safe use
You’re free to install the ground-mount frame, pour footings, and mount the solar panels yourself — just leave the final connections to a qualified sparkie.
Note: While this system can technically qualify for rebates, its small size means there’s usually limited financial benefit in involving an accredited solar installer.Footing Requirements:
You’ll need to install 4 concrete footings:
• Minimum size: 600 mm x 600 mm x 600 mm each
• Centre spacing between support legs: 3.0 m
• Front-to-rear leg spacing (centre-to-centre): 1667 mm (for 20° tilt angle)
